0086-15951185209 LLGZ Flat Plate Large Clamshell Automatic Scraper Bag-pulling Discharge Centrifuge
Main features:
1. Utilizes variable frequency control, with smooth startup and adjustable separation factor;
2. Bag discharge, convenient for unloading, reduces labor intensity, improves production efficiency, and also avoids contamination and dispersion of finished products caused by manual unloading;
3. The material grains are not easily broken;
4. The base and casing are of an integral welding structure, with high bearing strength;
5. The base is of a flat plate structure, which not only lowers the machine's center of gravity, making the machine operation more stable, but also the flat plate base can be used as an operation platform, making operation more convenient;
6. Equipped with high viscosity liquid damping shock absorbers, more effectively eliminating vibrations, simplifying daily maintenance;

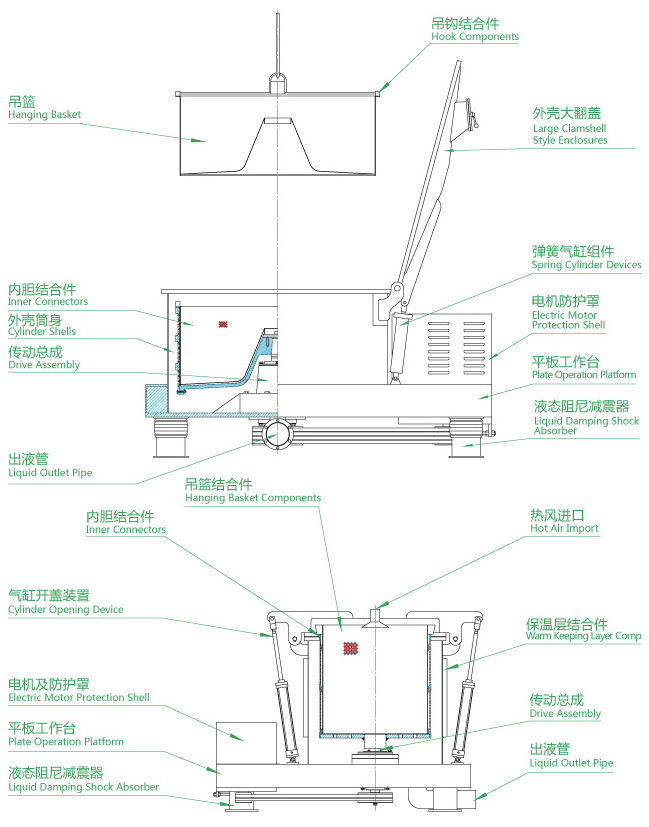

7. Reasonable structural design, the casing adopts a large flip cover design, which can thoroughly clean the casing and drum interlayer space of the centrifuge. The internal parts in contact with the material, the external structural components, and fasteners of the centrifuge are all made of stainless steel;
8. Enclosed structure, the sealing components use rubber or gas rubber, which can meet the requirements of closed explosion-proof, suitable for applications in toxic and flammable, explosive environments.
Standard configuration:
1. Equipped with a small flip cover;
2. Equipped with a regular motor;
3. Equipped with a variable frequency control system and a non-contact braking system;
4. Equipped with a high-viscosity liquid damping shock absorber.
Optional configurations:
1. Large flip cover and spring cylinder opening mechanism;
2. Insulation device (heating tube or hot air device, insulation layer of the outer shell);
3. Air pressure or hydraulic opening and control mechanism;
4. Opening protection device;
5. Over-vibration protection device;
6. Clean configuration, with all the flat surface covered by stainless steel material.
Technical Specifications:
Model |
Basket | Separation factors (DW²/2g) | Motor power(Kw) | Overall weight of the machine (Kg) |
Dimensions of the shape (L×W×H)mm | |||
| Diameter(mm) | Working volume(L) | Loading weight limit(Kg) | Speed(r/min) | |||||
| PDL600N | 600 | 40 | 60 | 780 | 204 | 4/5.5 | 980 | 1400×1000×1180 |
| PDL800N | 800 | 90 | 140 | 700 | 220 | 7.5 | 1500 | 1800×1200×1000 |
| PDL1000N | 1000 | 150 | 180 | 600 | 202 | 11 | 2200 | 2000×1400×1100 |
| PDL1200N | 1200 | 230 | 300 | 500 | 168 | 15/18.5 | 3500 | 2400×1700×1200 |
Note:
1. The loading limit weight includes the weight of the hanging basket.
2. Due to the special nature of the loading materials, the distribution of the materials is different. Therefore, the specific configuration and parameters of the dehydration machine, before placing the order, shall be based on the parameters agreed upon by the customer and the company's technical department.
