0086-15951185209 LLGZ Flat Plate Large Clamshell Automatic Scraper Bag-pulling Discharge Centrifuge
Main features:
1. Variable frequency control, smooth startup, adjustable separation factor;
2. PLC control, program setting, automatic control throughout the process of feeding, initial filtration, washing, fine filtration, and discharging;
3. The base and casing are of an integral welding structure, with high bearing strength;
4. The base is of a flat structure, which not only lowers the center of gravity of the machine, making the machine operation more stable, but also the flat base can be used as an operation platform, making operation more convenient;
5. Independent inclined disc feeding device: uniform feeding and operability are good, connected with the electrical control system, achieving automatic control;
6. Large cover structure design, making machine maintenance and filter cloth replacement more convenient;
7. Equipped with high viscosity liquid damping shock absorbers, more effectively eliminating vibration, simplifying daily maintenance;
8. Enclosed structure, using silicone rubber or fluororubber seals, can prevent toxic and highly corrosive materials from leaking and injuring people, with a high safety factor;
9. Electromechanical integrated material detector, with good reliability;
10. Energy consumption braking, non-contact braking method, no friction dust pollution;
11. Safety protection: opening cover protection, over-vibration protection device, motor overload and overheating protection, scraper rotation, lifting mechanical and electrical dual control, scraper and drum interlocking protection;
12. Optional nitrogen protection device, suitable for explosion-proof applications.
Standard configuration:

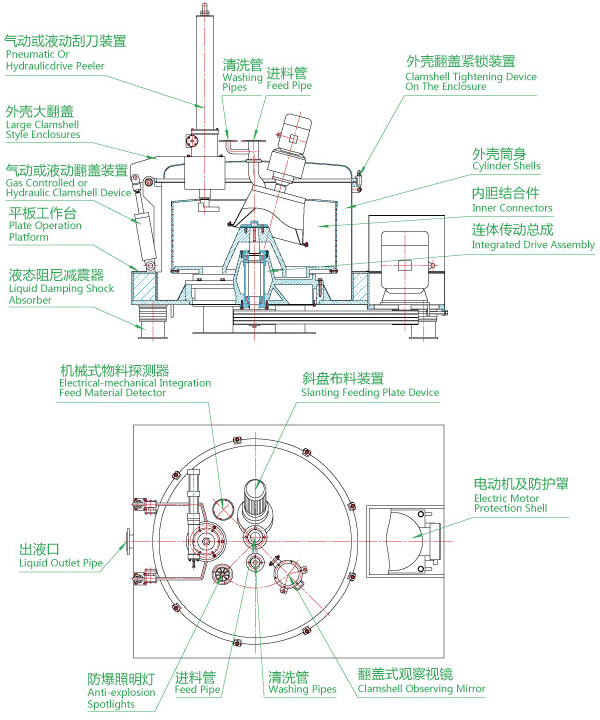

1. Large flip cover design, equipped with scraper device, inclined plate fabricating device, explosion-proof lighting fixture, observation visor, feeding pipe, washing pipe;
2. Equipped with a regular motor or explosion-proof motor;
3. Equipped with PLC device's variable frequency control system and non-contact braking system;
4. Equipped with hydraulic station;
5. Equipped with integrated mechanical and electrical material detector;
6. Equipped with liquid damping shock absorber.
Optional configurations:
1. Nitrogen protection device;
2. Over-vibration protection device;
3. Online cleaning device;
4. Gas-assisted scraper device;
5. Opening cover protection device;
6. High-pressure gas backflush device;
7. Discharge air or liquid control butterfly valve;
8. Inlet pipe and washing pipe pneumatic or hydraulic ball valve;
9. On-site explosion-proof operation box;
10. Select the corresponding material according to the anti-corrosion requirements of the separated materials: stainless steel 304, 316, 316L, 321, etc., titanium material or carbon steel with plastic coating, rubber lining, or Halar lining.
Technical Specifications:
Model |
Basket | Separation factors (DW2/2g) | Motor power(Kw) | Overall weight of the machine (Kg) |
Dimensions of the shape (L×W×H)mm | |||
| Diameter(mm) | Working volume(L) | Loading weight limit(Kg) | Speed(r/min) | |||||
| LGZ800 | 800 | 90 | 140 | 1200 | 645 | 7.5 | 2200 | 1800×1200×2050 |
| LGZ1000 | 1000 | 160 | 200 | 1000 | 560 | 11 | 3100 | 2000×1400×2250 |
| LGZ1200 | 1200 | 260 | 330 | 900 | 544 | 18.5 | 4500 | 2400×1800×2500 |
| LGZ1250 | 1250 | 300 | 400 | 900 | 567 | 22 | 4800 | 2400×1800×2500 |
| LGZ1500 | 1500 | 540 | 680 | 800 | 538 | 30 | 7000 | 2600×2200×2750 |
