0086-15951185209 LLGZ Flat Plate Large Clamshell Automatic Scraper Bag-pulling Discharge Centrifuge
Main features:
1. Utilizes variable frequency control, ensuring smooth startup and adjustable separation factors;
2. Equipped with a non-contact braking system, facilitating maintenance and servicing;
3. Specifically designed for large-capacity inner liner, achieving high single-time dehydration efficiency;
4. Tailored for the special circumstances of the down product industry, with small-pore design for the inner liner;
5. Design of the inner liner liquid-blocking plate and baffle, effectively preventing materials from entering the gap between the inner liner and the outer shell;

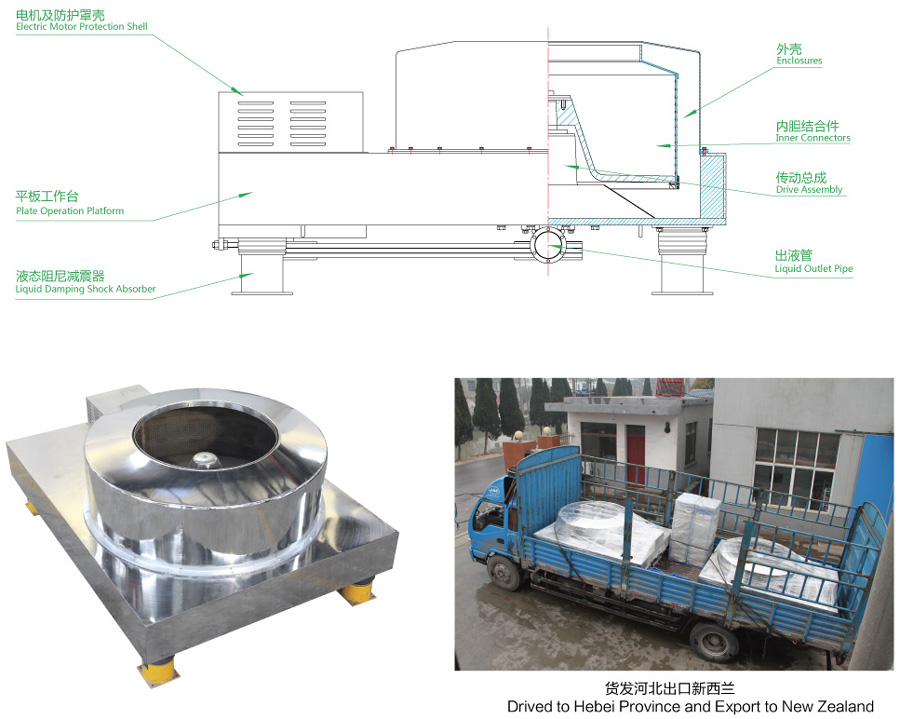

6. The machine base is of a flat structure, not only reducing the machine's center of gravity and making the machine operation more stable, but also the flat machine base can serve as an operation platform, making operation more convenient;
7. Configured with a high-viscosity liquid damping shock absorber, more effectively eliminating vibrations and simplifying daily maintenance.
Standard configuration:
1. Open design of the casing;
2. Equipped with a common single-speed or double-speed motor;
3. Variable-frequency control cabinet, non-contact braking system.
Optional equipment:
1. Small flap cover or large flap cover configuration;
2. Over-vibration protection system
Technical Specifications:
Model |
Basket | Separation factors (DW²/2g) | Motor power(Kw) | Overall weight of the machine (Kg) |
Dimensions of the shape (L×W×H)mm | |||
| Diameter(mm) | Working volume(L) | Loading weight limit(Kg) | Speed(r/min) | |||||
| PS800N | 800 | 100 | 120 | 1200 | 645 | 5.5 | 1500 | 1800×1200×1000 |
| PS1000N | 1000 | 150 | 180 | 1000 | 560 | 7.5 | 2200 | 2000×1400×1000 |
| PS1200N | 1200 | 260 | 290 | 900 | 544 | 11 | 3500 | 2400×1700×1000 |
| PS1500N | 1500 | 540 | 400 | 700 | 412 | 15/18.5 | 4000 | 2500×2000×1150 |
| PS1600N | 1600 | 673 | 500 | 700 | 440 | 18.5 | 4100 | 2500×2000×1150 |
| PS1800N | 1800 | 960 | 600 | 520 | 273 | 22 | 4800 | 2900×2400×1200 |
| PS2000N | 2000 | 1150 | 720 | 400 | 180 | 30 | 5500 | 3000×2500×1250 |
