0086-15951185209 LLGZ Flat Plate Large Clamshell Automatic Scraper Bag-pulling Discharge Centrifuge
Main features:
1. Utilizes variable frequency control, with smooth startup and adjustable separation factor;
2. Bag discharge, convenient for unloading, reduces labor intensity, improves production efficiency, and also avoids contamination and dispersion of finished products caused by manual unloading;
3. The material grains are not easily broken;
4. The base and casing are of an integral welding structure, with high bearing strength;
5. The base is of a flat plate structure, which not only lowers the machine's center of gravity, making the machine operation more stable, but also the flat plate base can be used as an operation platform, making operation more convenient;
6. Equipped with high viscosity liquid damping shock absorbers, more effectively eliminating vibrations, simplifying daily maintenance;
7. Reasonable structural design, the casing adopts a large flip cover design, which can thoroughly clean the casing and drum interlayer space of the centrifuge. The internal parts in contact with the material, the external structural components, and fasteners of the centrifuge are all made of stainless steel;
8. Enclosed structure, the sealing parts use silicone rubber or fluororubber, which can meet the requirements of closed explosion-proof, suitable for applications in toxic and flammable, explosive environments.
Standard configuration:

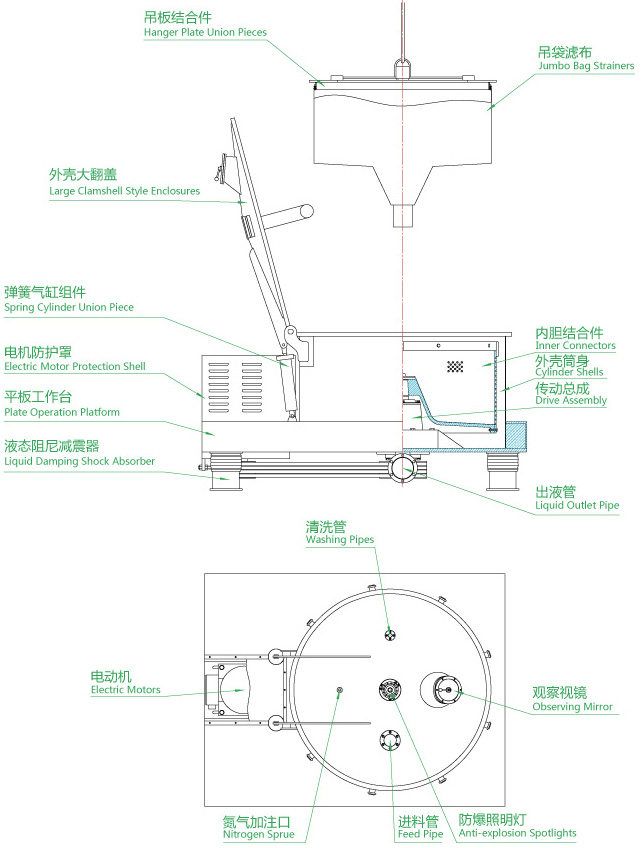

1. Large flip cover device and cylinder spring opening device, equipped with explosion-proof lamp, feed pipe, cleaning pipe, and observation sight glass;
2. Sealed structure, sealing components use rubber or fluororubber;
3. Equipped with liquid damping shock absorber;
4. Configured with ordinary motor or explosion-proof motor;
5. Equipped with frequency conversion control system and non-contact braking system;
6. Comes with a set of dedicated lifting equipment per unit/each unit when leaving the factory;
Optional configurations:
1. Nitrogen protection system;
2. Online cleaning device;
3. Cover opening protection device;
4. Over-vibration protection device;
5. On-site explosion-proof button;
6. Cyclone outlet device;
7. Select the corresponding material according to the anti-corrosion requirements of the separated materials: stainless steel 304, 316, 316L, 321, etc., plastic coating, rubber coating, or Halar coating on the surface of the plastic or carbon steel.
Technical Specifications:
Model |
Basket | Separation factors (DW2/2g) | Motor power(Kw) | Overall weight of the machine (Kg) |
Dimensions of the shape (L×W×H)mm | |||
| Diameter(mm) | Working volume(L) | Loading weight limit(Kg) | Speed(r/min) | |||||
| PSZ/PSBZ600 | 600 | 40 | 60 | 1440 | 697 | 4 | 1000 | 1100×1100×950 |
| PSZPSBZ800 | 800 | 90 | 140 | 1440 | 929 | 7.5 | 1500 | 1300×1300×1000 |
| PSZ/PSBZ1000 | 1000 | 150 | 180 | 960 | 516 | 11 | 2000 | 1500×1500×1100 |
| PSZ/PSBZ1200 | 1200 | 230 | 240 | 960 | 619 | 15 | 2800 | 1800×1800×1200 |
| PSZPSBZ1250 | 1250 | 280 | 350 | 960 | 645 | 18.5 | 3200 | 1800×1800×1350 |
| PSZPSBZ1500 | 1500 | 300 | 400 | 750 | 473 | 22 | 4200 | 2200×2200×1450 |
