0086-15951185209 LLGZ Flat Plate Large Clamshell Automatic Scraper Bag-pulling Discharge Centrifuge
Main features:
1. Utilizes variable frequency control, with smooth startup and adjustable separation factors;
2. The material grains are less prone to breakage;
3. Highly versatile and applicable to a wide range of scenarios;
4. The base and casing are of an integral welding structure, with high bearing strength;
5. The base is of a flat structure, which not only lowers the machine's center of gravity, making the machine operation more stable, but also the flat base can serve as an operation platform, making operation more convenient;
6. Equipped with high viscosity liquid damping shock absorbers, more effectively eliminating vibrations and simplifying daily maintenance;
7. Reasonable structural design, with stainless steel used for the internal contact parts of the centrifuge, external structural components of the centrifuge, and fasteners;
8. Enclosed structure, with sealing components using silicone rubber or fluororubber. It can meet the requirements of closed explosion-proof, suitable for applications in toxic and flammable, explosive environments;
9. Optional online cleaning device, for cleaning the inner wall of the centrifuge shell, the inner and outer surfaces of the drum, and the surface of the collection tank, which are inaccessible to the centrifuge, ensuring the cleanliness requirement and complying with GMP standards.
Standard configuration:
1. Open design of the casing;
2. Equipped with explosion-proof direct-connected motor;
3. Equipped with hydraulic damping shock absorber;
4. Equipped with variable frequency control system and non-contact braking system;
Optional configurations:
1. Small flip cover device, equipped with explosion-proof lighting, feed pipe, washing pipe, and observation mirror;

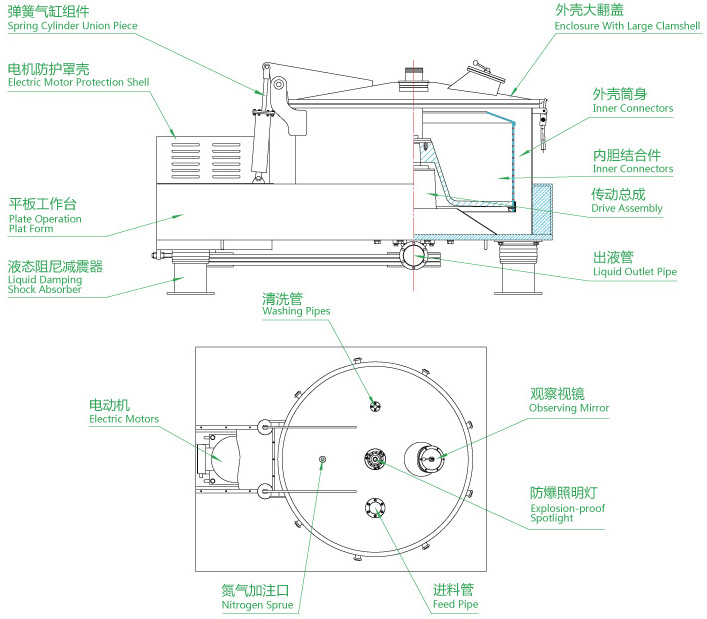

2. Large flip cover device and cylinder spring opening device, equipped with explosion-proof lighting, feed pipe, washing pipe, and observation mirror;
3. Nitrogen protection device;
4. Online cleaning device;
5. Over-vibration protection device;
6. Opening protection device;
7. Cyclone device;
8. On-site explosion-proof button;
9. Select the corresponding material according to the anti-corrosion requirements of separating materials: stainless steel 304, 316, 316L, 321, etc., titanium material or carbon steel with plastic coating, rubber coating, or Halar coating on the surface.
Technical Specifications:
| Model | Basket |
Separation factors (DW2/2g) |
Motor power(Kw) |
Overall weight of the machine (Kg) | Dimensions of the shape (L×W×H) mm |
|||
| Diameter(mm) |
Working volume(L) |
Loading weight limit(Kg) |
Speed (r/min) |
|||||
| PS/PSB600 | 600 | 40 | 60 | 1350 | 612 | 3 | 1000 | 1400×1000×950 |
| PS/PSB800 | 800 | 90 | 140 | 1200 | 645 | 5.5 | 1800 | 1800×1200×1000 |
| PS/PSB1000 | 1000 | 150 | 180 | 1000 | 560 | 7.5 | 2500 | 2000×1400×1100 |
| PS/PSB1200 | 1200 | 230 | 240 | 900 | 544 | 11/15 | 3400 | 2400×17001×150 |
| PS/PSB1250 | 1250 | 280 | 350 | 900 | 567 | 15/18.5 | 3500 | 2400×1700×1150 |
| PS/PSB1500 | 1500 | 300 | 400 | 800 | 538 | 18.5/22 | 4800 | 2600×2200×1500 |
