0086-15951185209 LLGZ Flat Plate Large Clamshell Automatic Scraper Bag-pulling Discharge Centrifuge
Main features:
1. Utilizes variable frequency control, ensuring smooth startup and adjustable separation factors;
2. The base and casing are made of an integral welded structure, with high load-bearing capacity;
3. The base is of a flat plate structure, which not only lowers the center of gravity of the machine, making its operation more stable, but also can serve as an operation platform, making operation more convenient;
4. Equipped with high-viscosity liquid damping shock absorbers, which more effectively eliminate vibrations and simplify daily maintenance;
5. The processes of feeding, initial filtration, washing, fine filtration, and discharging can be flexibly adjusted according to the characteristics of the materials and separation requirements, with strong adaptability;
6. The speed of the scraper during manual scraping can be freely adjusted according to the state of the filter cake, especially suitable for materials with relatively hard filter cakes;
7. The relatively sealed structure can prevent certain toxic and highly corrosive materials from leaking and harming people, with high safety coefficient, and at the same time, it can improve the working environment on site;
8. The mechanical locking of the scraper rotation and elevation has good reliability;
9. Energy consumption braking, non-contact braking method, without frictional dust pollution.
Standard configuration:

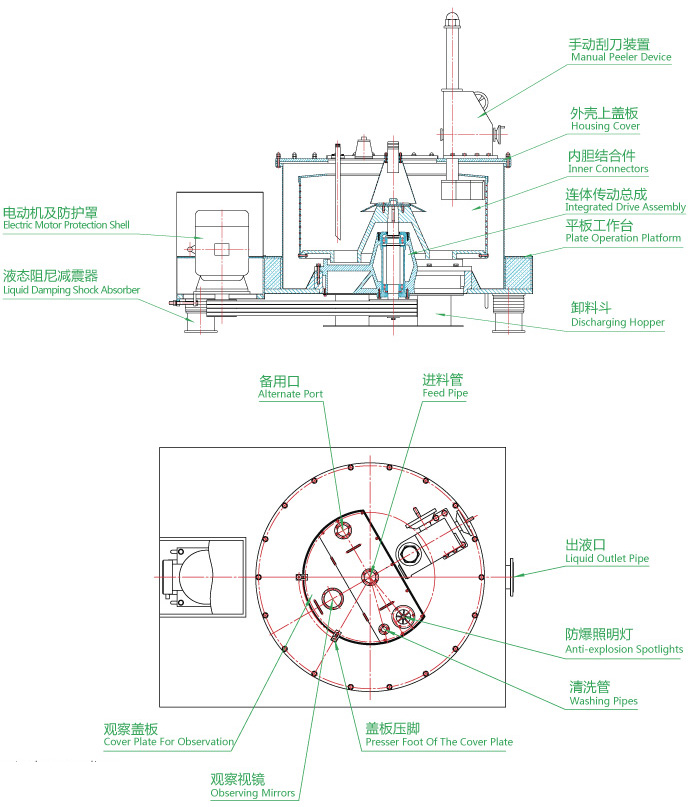

1. The shell has a flat cover design, equipped with explosion-proof lighting fixtures, observation visor, feed pipe, and washing pipe;
2. Equipped with a regular motor or explosion-proof motor;
3. Equipped with a variable frequency control system and non-contact braking system;
4. Equipped with a liquid damping shock absorber.
Optional configurations:
1. Over-vibration protection device;
2. On-site explosion-proof buttons;
3. Select the corresponding material according to the anti-corrosion requirements for separating materials: stainless steel 304, 316, 316L, 321, etc., titanium, or carbon steel with plastic coating, rubber coating, or Halar coating on the surface.
Technical Specifications:
Model |
Basket | Separation factors (DW2/2g) | Motor power(Kw) | Overall weight of the machine (Kg) |
Dimensions of the shape (L×W×H)mm | |||
| Diameter(mm) | Working volume(L) | Loading weight limit(Kg) | Speed(r/min) | |||||
| PG800 | 800 | 90 | 140 | 1200 | 645 | 7.5 | 2000 | 1800×1200×2050 |
| PG1000 | 1000 | 160 | 200 | 1000 | 560 | 11 | 2800 | 2000×1400×2250 |
| PG1200 | 1200 | 260 | 330 | 900 | 544 | 15 | 4200 | 2400×1800×2500 |
| PG1250 | 1250 | 300 | 400 | 900 | 567 | 18.5 | 4300 | 2400×1800×2500 |
| PG1500 | 1500 | 540 | 680 | 800 | 538 | 30 | 7000 | 2600×2200×2700 |
