0086-15951185209 LLGZ Flat Plate Large Clamshell Automatic Scraper Bag-pulling Discharge Centrifuge
Product Introduction:

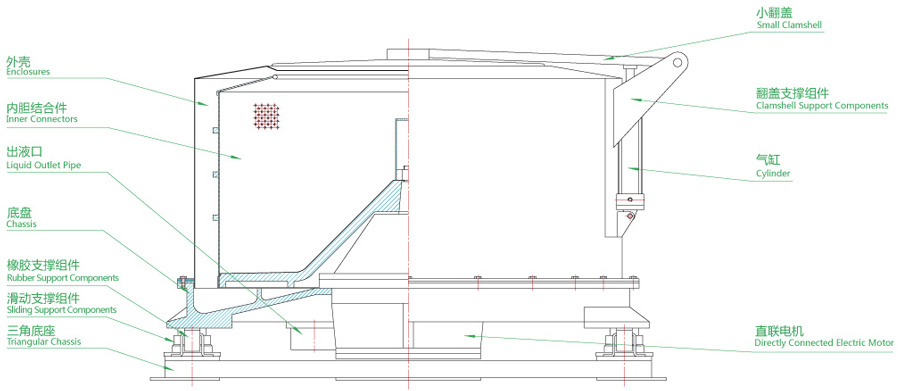

The TLZ type fully automatic industrial dehydration machine is an improved version of the SS type three-legged dehydration machine. It has eliminated the spring shock absorption technology of the traditional three-legged centrifuge and adopted the spherical shock absorption technology combining mechanical and hydraulic methods, resulting in better shock absorption performance. It has also eliminated the motor hanging method of the traditional centrifuge and replaced it with a direct-connected motor. The motor directly drives the drum, which not only improves efficiency but also reduces the installation and usage space of the machine.
This series of dehydration machines have large capacity, are easy to install and use, and have a high degree of automation. They are widely applicable to various fabric industries such as pulp, bleaching, printing, dyeing, and washing.
Main features:
1. Utilizes variable frequency control, ensuring smooth startup and adjustable separation factors;
2. Employs a combination of mechanical and hydraulic spherical damping technology, resulting in excellent damping effect;
3. Drives the drum through direct motor connection, achieving high operational efficiency;
4. Utilizes a non-mechanical braking device, providing smooth braking without loss and facilitating maintenance and servicing;
5. Large capacity design, capable of loading a large amount of materials and achieving high dehydration efficiency;

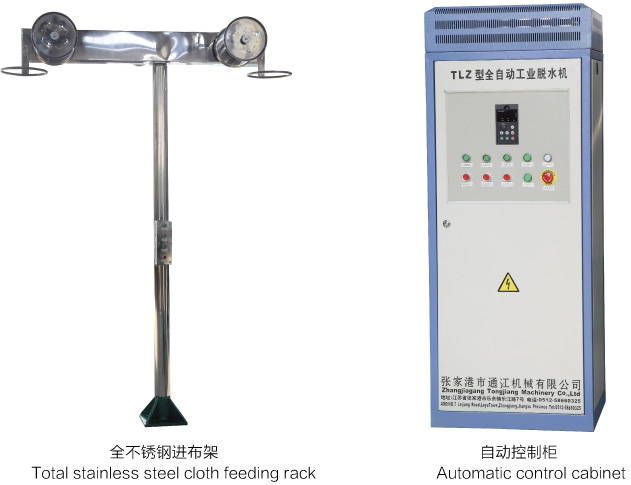

6. Equipped with an automatic fabric feeding device, enhancing automation levels and facilitating operation.
Standard configuration:
1. Frequency conversion control system, non-contact braking system;
2. Cylinder opening device;
3. Fully stainless steel fabric feeding frame.
Optional equipment:
1. Lid opening protection device;
2. Over-vibration protection device
Technical Specifications:
| Model | Basket | Separation factors (DW²/2g) | Motor power(Kw) | Overall weight of the machine (Kg) |
Dimensions of the shape (L×W×H)mm | ||
| Diameter(mm) | Working volume(L) | Loading weight limit(Kg) | |||||
| TLZ1500N | 1500 | 0-700 | 600 | 412 | 12 | 3000 | 2550×2200×2800 |
| TLZ1800N | 1800 | 0-520 | 900 | 273 | 15 | 4200 | 2865×2400×3000 |
| TLZ2000N | 2000 | 0-400 | 1100 | 180 | 18.5 | 5100 | 3100×2600×3300 |
