0086-15951185209 LLGZ Flat Plate Large Clamshell Automatic Scraper Bag-pulling Discharge Centrifuge
Main features:
1. The base adopts a flat structure, which not only lowers the center of gravity of the machine, making its operation more stable, but also can serve as an operation platform, making the operation more convenient; there is no foundation installation form, which is convenient for the installation and maintenance of the machine.
2. The base and the casing are of an integral welding structure, with high load-bearing strength.
3. It is equipped with high-viscosity liquid damping shock absorbers, providing excellent vibration and shock isolation performance for the centrifuge.
4. It adopts variable frequency control, with smooth startup and adjustable separation factors.
5. It uses PLC control, with program setting, automatic control throughout the process of feeding, initial filtration, washing, fine filtration, and discharging.
6. It uses an upper-mounted direct-connected motor, avoiding dust friction caused by belt transmission.
7. The bearing seat is designed independently, equipped with an oiling channel, making operation and maintenance convenient; the bearing support length is large, with good bearing performance.
8. The main shaft inside the drum is treated for corrosion resistance, and the lower bearing cover adopts double-layer sealing technology to ensure the main shaft is protected from corrosion.
9. The structure is sealed, using silicone rubber or fluororubber seals, which can prevent toxic and highly corrosive materials from leaking and harming people, with a high safety factor.
10. It uses an integrated material detector for electricity and machinery, with good reliability.
11. Energy consumption braking, non-contact braking method, without frictional dust pollution.
12. The single-time separation capacity is large, the output is high, improving production efficiency.
13. Safety protection: vibration protection system, motor overload and overheating protection, scraper rotation, lifting mechanical and electrical dual control, scraper and drum interlocking protection.
14. Optional nitrogen protection system, suitable for explosion-proof applications.
Standard configuration:

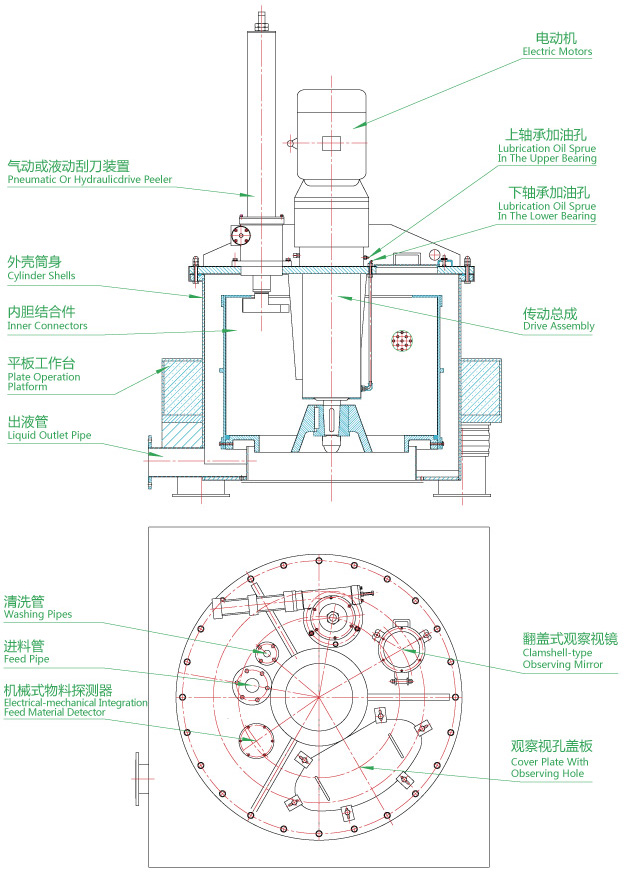

1. The casing is equipped with a scraper device, explosion-proof lighting, observation mirror, feed pipe, washing pipe, and maintenance hole;
2. Equipped with a regular motor or explosion-proof motor;
3. Equipped with a PLC device-based variable frequency control system and non-contact braking system;
4. Equipped with a hydraulic station;
5. Equipped with an integrated mechanical and electrical material detector;
6. Equipped with a liquid damping shock absorber.
Optional configurations:
1. Nitrogen protection device;
2. Over-vibration protection device;
3. Gas-assisted scraper device;
4. Online cleaning device;
5. High-pressure gas backflush device;
6. Pneumatic or hydraulic butterfly valve for discharging;
7. Pneumatic or hydraulic ball valves for the inlet pipe and washing pipe;
8. On-site explosion-proof operation box;
9. Select the corresponding material according to the anti-corrosion requirements of the separated materials: stainless steel 304, 316, 316L, 321, etc., titanium material or carbon steel with plastic coating, rubber lining, or Halar lining.
Technical Specifications:
Model |
Basket | Separation factors (DW2/2g) | Motor power(Kw) | Overall weight of the machine (Kg) |
Dimensions of the shape (L×W×H)mm | |||
| Diameter(mm) | Working volume(L) | Loading weight limit(Kg) | Speed(r/min) | |||||
| PAUT1250A | 1250 | 280 | 350 | 970 | 658 | 22 | 4200 | 2000×2000×2200 |
| PAUT1250B | 1250 | 450 | 580 | 970 | 658 | 30 | 4800 | 2000×2000×2600 |
| PATU1320 | 1320 | 490 | 630 | 900 | 598 | 20 | 5100 | 2200×2200×2600 |
| PAUT1500 | 1500 | 640 | 830 | 800 | 538 | 37 | 8000 | 2500×2500×2700 |
| PAUT1600 | 1600 | 930 | 1200 | 750 | 504 | 45 | 9500 | 2500×2500×2900 |
