0086-15951185209 LLGZ Flat Plate Large Clamshell Automatic Scraper Bag-pulling Discharge Centrifuge
Product Introduction:
The LLW series horizontal spiral discharge filtering centrifuge is a low-energy-consuming, stable-performance, and highly effective model. It is widely used in industries such as chemical engineering, food, salt, mining, and pharmaceuticals. Throughout the entire separation process, the procedures of feeding, desliming, washing, separation, and discharging are completed continuously. It has high production efficiency and automation level, and is an advanced separation equipment.
Main features:
1. Continuous feed and continuous discharge type centrifugal filter, with excellent separation effect and high output;
2. Main components such as the drum and the screw are made of corrosion-resistant stainless steel and titanium alloy;
3. Special designed dedicated filter screen, with a thickness of 2.5mm, long service life;
4. The drum speed can be adjusted continuously according to needs, and the separation factor can be adjusted;
5. The screw differential reducer can be adjusted;
6. Safety protection system: speed detection, vibration protection device, motor overload protection, screw zero difference number protection.
Working principle:

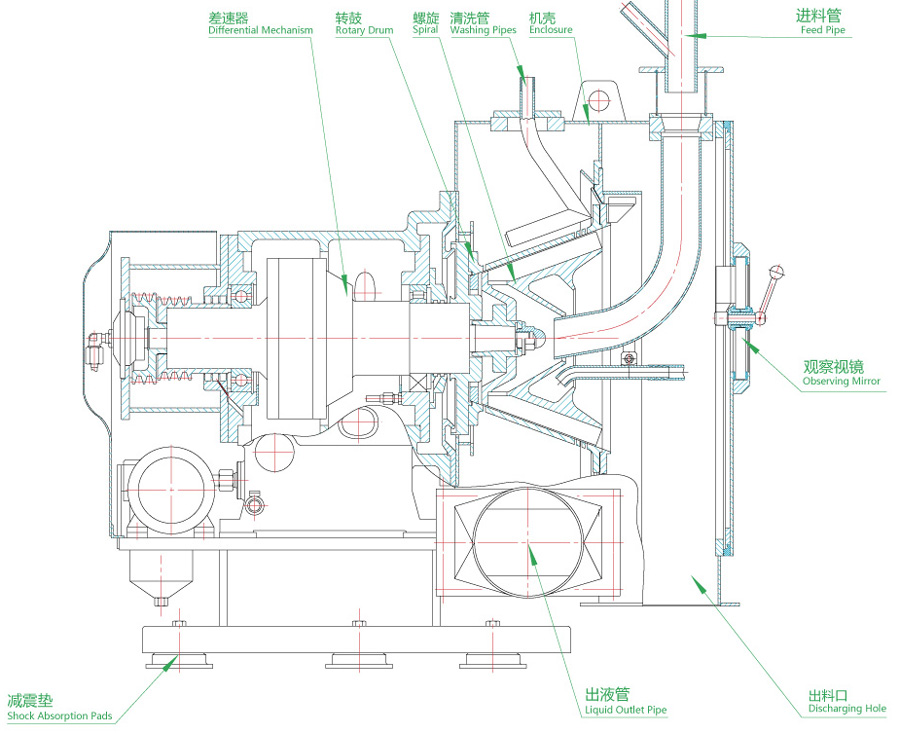

The suspension fluid enters the spiral cavity through the feed pipe and then passes through the small end of the spiral and reaches the spray outlet near the bottom of the conical end of the drum. It then enters the drum under the action of the centrifugal force field. The liquid phase in the slurry is separated out through the screen set on the drum wall, while the solid particles are retained in the drum. At the same time, the solid particles in the drum move from the small end to the large end under the action of centrifugal force and the difference in speed between the spiral and the drum. During this movement, due to the increase in the rotation diameter, the centrifugal force increases rapidly, and the solid particles change from a high moisture content when they enter initially to a low moisture content when they are discharged from the drum, thus achieving automatic and continuous separation of solid and liquid phases.
Technical Specifications:
Model |
Basket | Separation factors (DW²/2g) | Motor power(Kw) | Overall weight of the machine (Kg) |
Dimensions of the shape (L×W×H)mm | ||
| Diameter(mm) | Feed rate (m³/h) |
Speed(r/min) | |||||
| LLW320 | 320 | 0.5-2.5 | 2630 | 1240 | 7.5 | 700 | 1350×1050×1000 |
| LLW350 | 350 | 1-3 | 3000 | 1770 | 11 | 1000 | 1400×1250×1150 |
| LLW400 | 400 | 2-4 | 2800 | 1760 | 15 | 1500 | 1500×1350×1250 |
| LLW450 | 450 | 2-5 | 2500 | 1580 | 22 | 2000 | 1600×1400×1300 |
| LLW530 | 530 | 3-10 | 2000 | 1190 | 30 | 2500 | 1700×1450×1400 |
| LLW630 | 630 | 4-20 | 1850 | 1207 | 37 | 3500 | 1900×1600×1550 |
